PCS 32 Adjustable Chassis Starter Kit

Name: PCS 32 Adjustable Chassis Starter Kit
SKU: PCS-32-3
Price: 14.58 GBP
Availability: InStock

Ref: PCS-32-3

Quick Overview

PCS 32 Adjustable Chassis Starter Kit with Slot.it Axles and Gear.

£17.50

Availability: In stock

*Select Axle Length

* Required Fields

£17.50

Qty:

Details

PCS 32 Adjustable Chassis Starter Kit with Slot.it Axles and Gear.

At last the answer to your car model kit and scratch building problems.

The PCS 32 chassis is designed to convert your static body kits into running slot cars.

Simply add your own preferred style of wheels and tyres or select one of our wheel & tyre pack options to complete the chassis.

Kit Contents:

1x PCS 32 adjustable chassis
1x Sliding guide holder
3x Pairs of mix size front axle spacers
1x Slot-it Inline gear 28t *(Requires 0.9mm Allen Key available separately)
1x Pinion 9t
1x S-Can motor 18,000rpm
2x Nylon Axle bearings
2x Slot-it axles 3/32 (Select length required from drop down menu)
1x Sloting Plus Screw Fit Guide, ride height spacers, screw
1x Braid & Motor wire
2x Eyelets
3x Screws

Please note due to the wide selection of parts included in this kit some of the content may differ slightly from that shown.

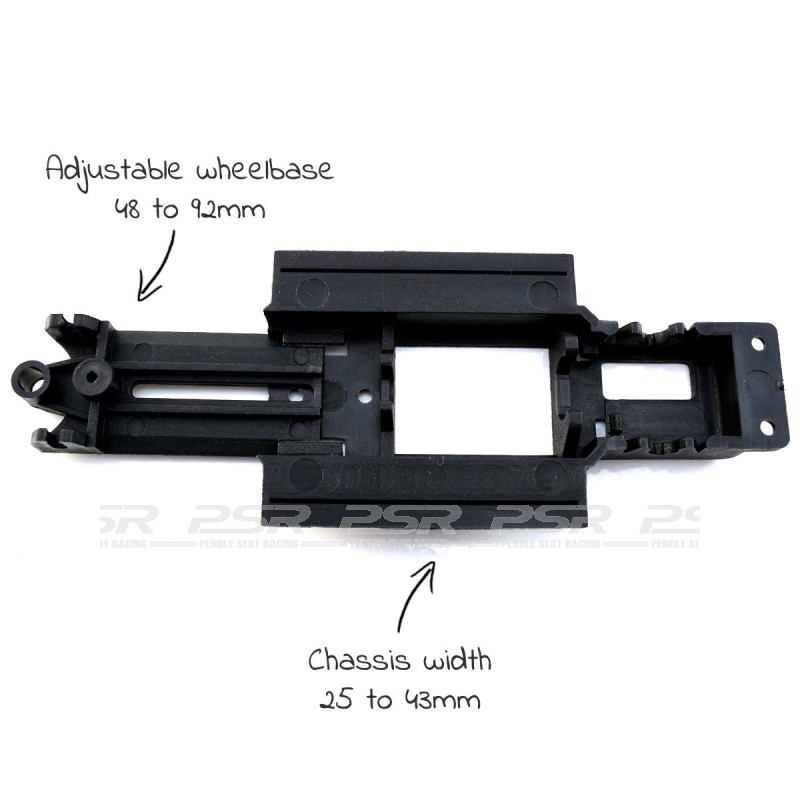

Wheelbase:
Minimum wheelbase in standard form: 82mm
(It is possible to reduce the overall wheelbase to 48mm long by cutting the chassis and front parts)

Maximum wheelbase: 92mm
The maximum length can be 101mm if using Step 2 parts (available separately)

Chassis Width
Width with side outriggers removed: 25mm
Width with side outriggers: 43mm

Height:
17mm (top of motor to underside of chassis)

Distance between axle bearings (left to right)
Front: 20mm
Rear: 20mm

Height of guide post:
6.5mm

Bottom of chassis to bottom of guide post:
1.5mm

Bare chassis weight:
10g

Minimum tyre diameter:
18mm (leaving 1mm ground clearance)

PCS Chassis Assembly Guide

Rob Bushill from SwiftSlots provides a comprehensive guide to assembling the PCS Chassis, a popular component in Pendle Slot Racing's range of resin kits. The video covers all chassis specifications, optional extras, and assembly steps, including soldering, guide installation, and adjusting the wheelbase.

Additional Information

Ref	PCS-32-3
Brand	PCS
Scale	1/32
