PCS 32 Adjustable Chassis Kit Step 2

Name: PCS 32 Adjustable Chassis Kit Step 2
SKU: PCS-32-1
Price: 8.29 GBP
Availability: InStock

Ref: PCS-32-1

Quick Overview

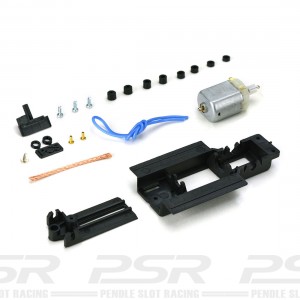

PCS 32 Adjustable Plastic Chassis Kit - with Step 2 parts.

£9.95

Availability: In stock

Qty:

Details

PCS 32 Adjustable Plastic Chassis Kit - with Step 2 parts.

At last the answer to your car model kit and scratch building problems.

The PCS 32 chassis is designed to convert your static body kits into running slot cars.

Ideal if you are motorising a kit with a longer wheelbase. They have also been used with good effect in 1/24th scale bodies.

Contents:

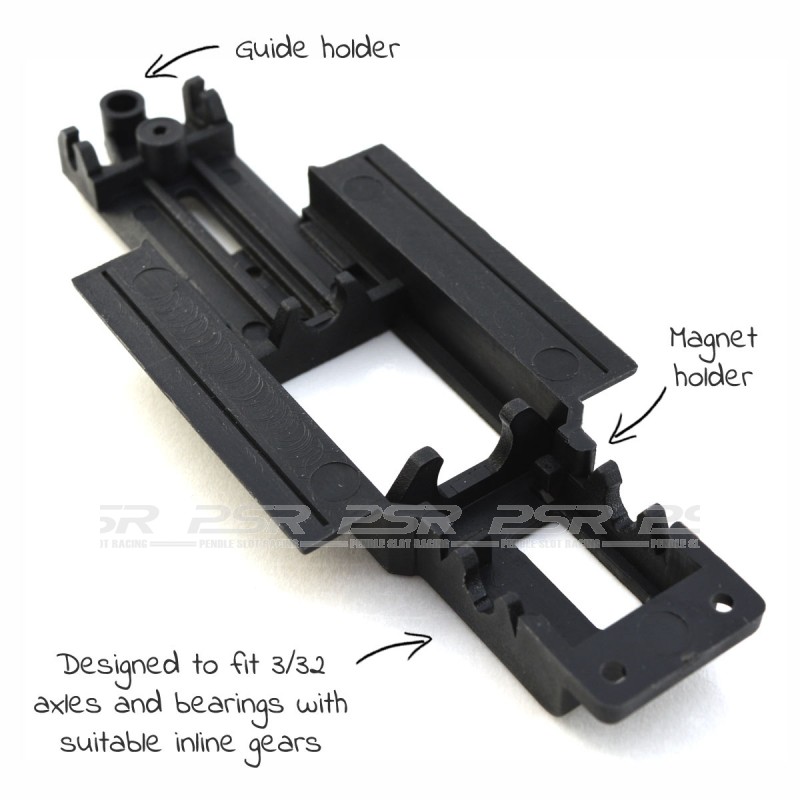

1x Chassis Main Frame
1x Sliding step-2 guide holder
3x Pairs of different size front axle spacers

Wheelbase:
Minimum wheelbase in standard form: 82mm
(It is possible to reduce the overall wheelbase to 48mm long by cutting the chassis and front parts)

Maximum wheelbase: 101mm

Chassis Width
Width with side outriggers removed: 25mm
Width with side outriggers: 43mm

Height:
17mm (top of motor to underside of chassis)

Distance between axle bearings (left to right)
Front: 20mm
Rear: 20mm

Height of guide post:
6.5mm

Bottom of chassis to bottom of guide post:
1.5mm

Bare chassis weight:
10g

Minimum tyre diameter:
18mm (leaving 1mm ground clearance)

A versatile chassis kit designed to fit various slot car racing parts.

S-Can motor endbell drive
3/32 axles with suitable inline gears
3/32 bearings
Scalextric guide (06008), Slot.it guide (SICH10) or (SICH07)
Can be used with or without magnet (PSR-M2)

PCS Chassis Assembly Guide

Rob Bushill from SwiftSlots provides a comprehensive guide to assembling the PCS Chassis, a popular component in Pendle Slot Racing's range of resin kits. The video covers all chassis specifications, optional extras, and assembly steps, including soldering, guide installation, and adjusting the wheelbase.

Additional Information

Ref	PCS-32-1
Brand	PCS
Scale	1/32
