PCS F2 Slotstox Kit

PCS F2 Slotstox - 1/28th scale slot car kit.

F2 Stock car racing is now available to race at home!

Designed and developed by Pendle Slot Racing and produced in high-quality 3D print.

Compatible with all 1/32 analogue slot track systems - Scalextric, Carrera, SCX, Ninco and Policar etc.

UK Stock Car Racing goes right back to 1954 and continues to have a loyal following today. The short-oval race series is a fast and tough contact motorsport, with none stop action from the drop of the green flag.

The F2 Stock car is a single seater custom-built car, rear-wheel drive and powered by a 2L engines at the front. Constructed of both section and tubular steel, they feature a robust chassis and roll cage, plus front and rear bumpers with side nerf bars. The bumpers are used to strategically push their opponents wide from the racing line in order to overtake them, deliberate full-on fencing and following-in is not allowed. Cars are also usually fitted with an aerofoil mounted on top of the roof. Some drivers may use two separate cars, which are either setup for tarmac or shale tracks.

Races are held on short oval tracks around the UK, either a shale or tarmac surface of up to a quarter mile in length and are surrounded by crash fencing. The number of drivers per race can be between around 20-30 cars.

PSR Blog - F2 Stock Car Kit

Two Slotstox kit options available:

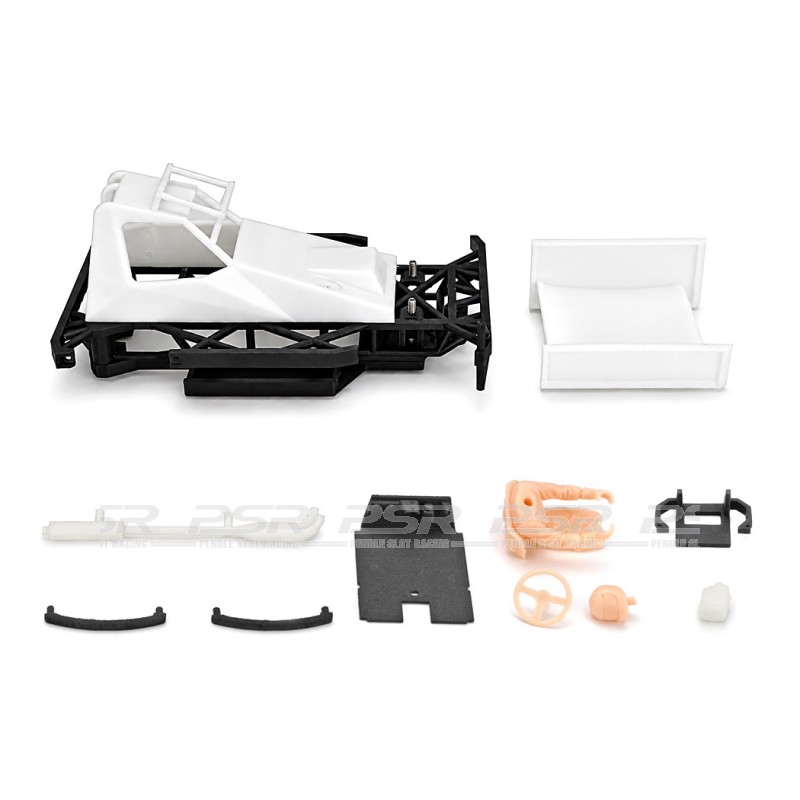

Body & Slot Chassis Kit (no running gear)

• 1 3D printed F2 body (choose Short or Large wing)
• 1 3D printed F2 chassis frame
• 2 3D printed rear wheel guards
• 1 3D printed lower chassis
• 1 3D printed exhaust
• 1 3D printed air filter
• 1 3D printed interior
• 1 Resin driver figure
• 1 Resin helmet
• 1 3D printed head restraint safety device
• 1 Resin steering wheel

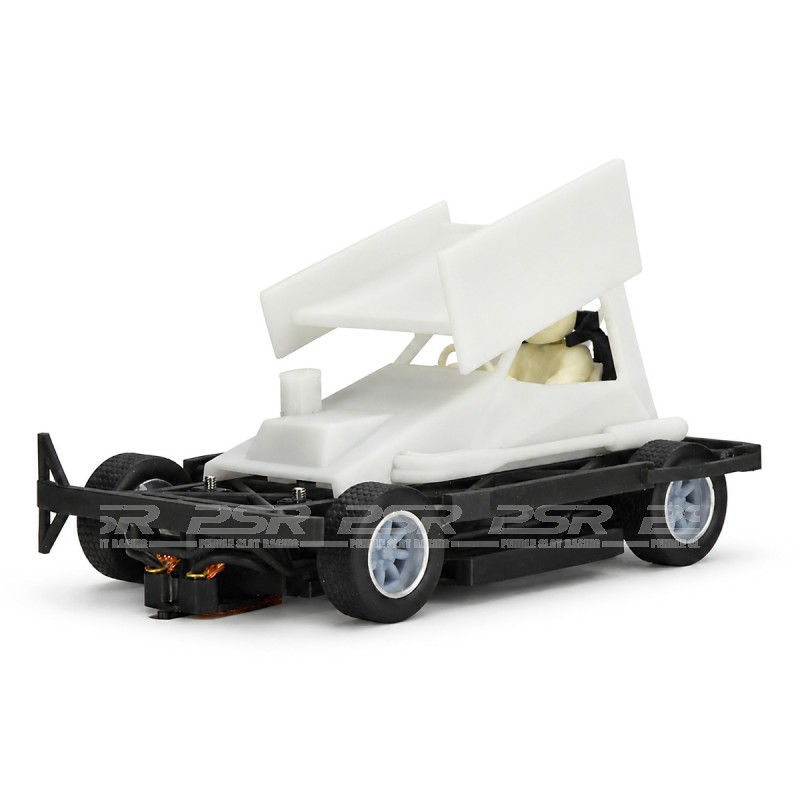

Body & Slot Chassis Kit + Mechanical Parts

• 1 3D printed F2 body (choose Short or Large wing)
• 1 3D printed F2 chassis frame
• 2 3D printed rear wheel guards
• 1 3D printed lower chassis
• 1 3D printed exhaust
• 1 3D printed air filter
• 1 3D printed interior
• 1 Resin driver figure
• 1 Resin helmet
• 1 3D printed head restraint safety device
• 1 Resin steering wheel
• 2 PCS-32141207 aluminium wheels (4pcs)
• 1 W11106 tyre pack (4pcs)
• 1 PCS-INS11a 3D printed wheel inserts (4pcs)
• 1 SIPA01-51 Slot-it axles (2pcs)
• 1 SICH110 0.5MM Slot-it motor mount
• 1 AC-4 S-Can motor with 9z pinion
• 1 Slot-it inline crown gear
• 1 Slot.it screw fit guide
• 1 Braid
• 1 Motor cable
• 2 Brass Eyelets
• 4 SICH54 Slot-it brass screws to secure motor mount
• 3 PSR-E21a 6mm chrome self tapping screws to secure lower chassis to chassis frame
• 1 PSR Black body screw to secure rear of body to chassis
• 4 PSR M2.5x6 grub screws (pre-fitted to chassis frame)
• 2 Front aluminium axle spacers



F2 Slotstox Measurements

• Length:104mm
• Width: 63mm
• Wheelbase: 67mm
• Weight: 68g



Tool Required

• Allen Key 0.9mm for wheel grub screws
• Allen Key 1.25mm for front axle ride height adjustment
• Screwdrivers - Flat and Phillips
• Soldering iron
• Glue
• Paint / decals for livery



The F2 stock car kit is also available in Modelstox version.

Kit Build Tutorials, Painting Guides & Tips
Step-by-step assembly videos
