  • PCS 32 Adjustable Chassis Kit PCS-32

PCS 32 Adjustable Chassis Kit

Ref: PCS-32

Quick Overview

PCS 32 Adjustable Plastic Chassis Kit. At last the answer to your car model kit and scratch building problems. The PCS 32 chassis is designed to convert your static body kits into running slot cars.
£6.76

Availability: In stock

Details

PCS 32 Adjustable Plastic Chassis Kit.

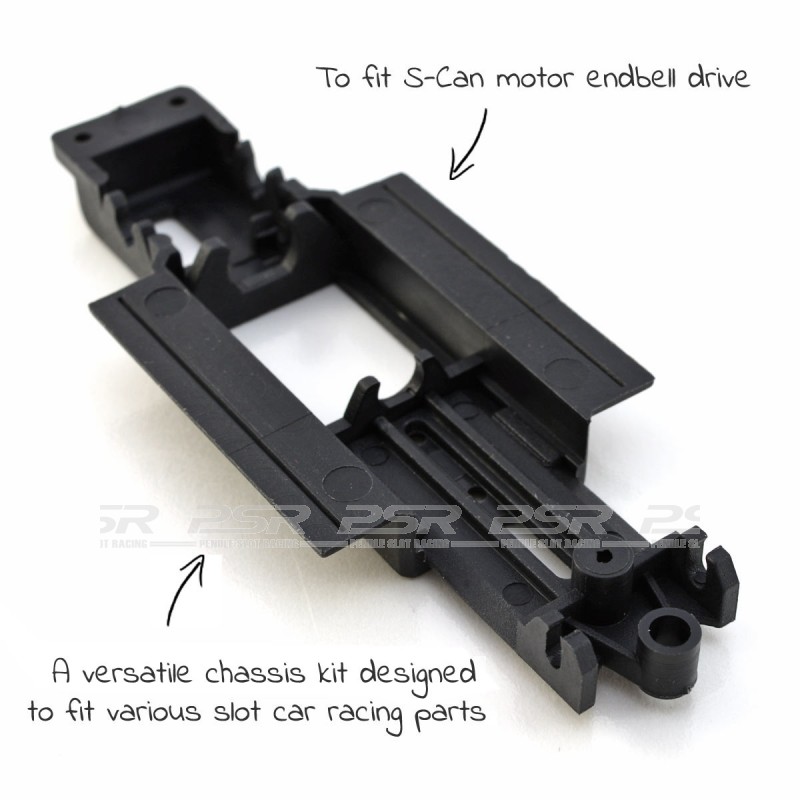

At last the answer to your car model kit and scratch building problems. The PCS 32 chassis is designed to convert your static body kits into running slot cars. Requires standard running gear, Scalextric type Mabuchi motor/endbell drive, can be used with or without magnet.

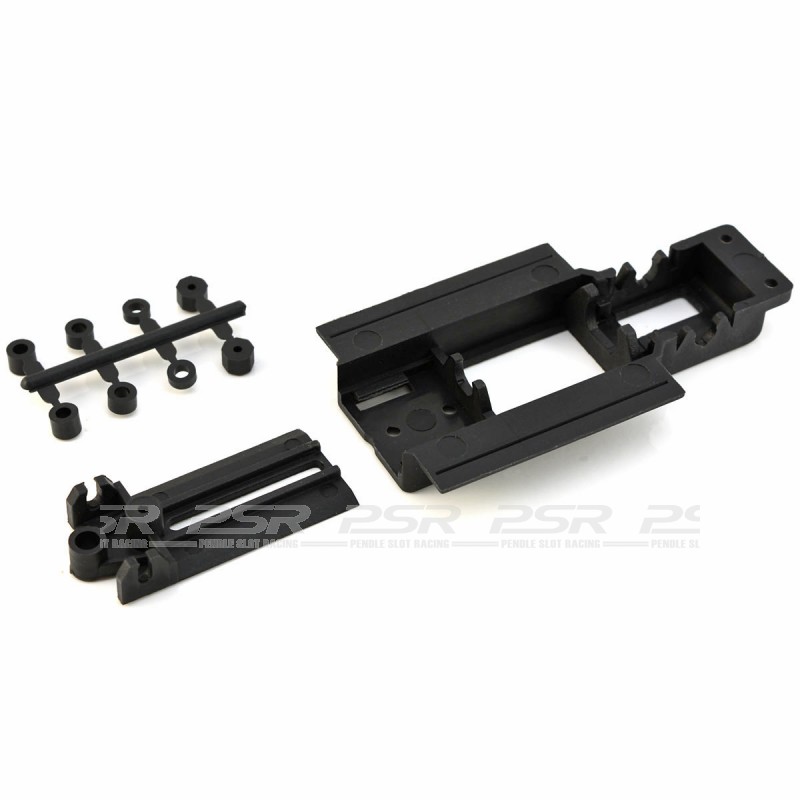

Contents:
1x Chassis Main Frame

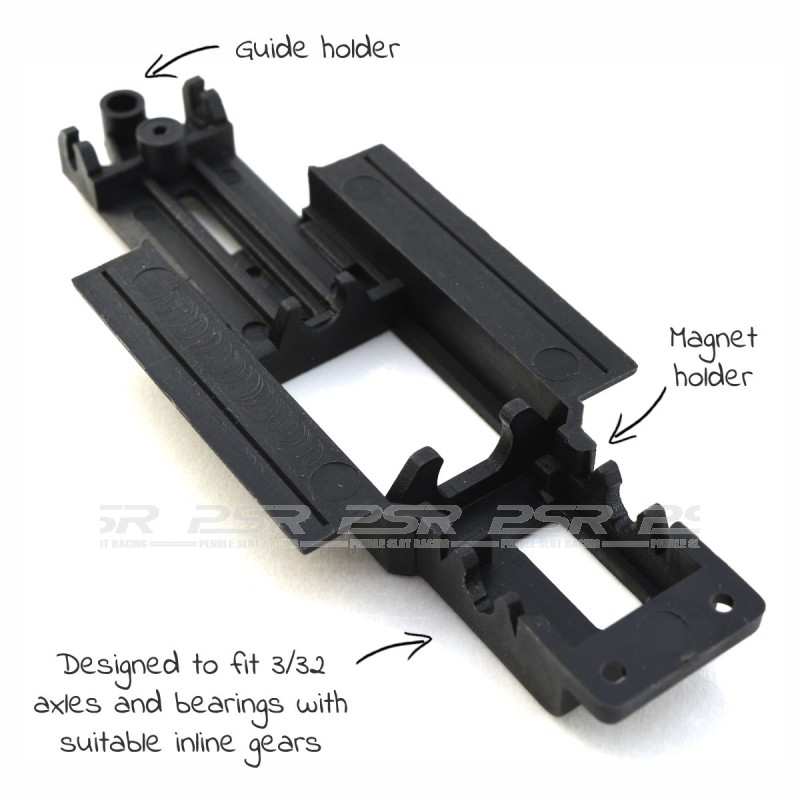

1x Sliding Guide Holder.
3x Pairs front axle spacers

Chassis Width
Width with side outriggers removed: 25mm
Width with side outriggers: 43mm

Chassis Length in standard form:
Minimum length: 94mm
Maximum length: 119mm (both front of guide post to rear of chassis)

Wheelbase:
Minimum wheelbase in standard form: 67mm.
(It is possible to reduce the overall wheelbase to 48mm long by cutting the chassis and front parts)
Maximum wheelbase: 101mm using Step 2 parts (axle centre to axle centre)

Height:
17mm (top of motor to underside of chassis)

Distance between axle bearings (left to right)
Front: 20mm
Rear: 20mm

Height of guide post:
6.5mm

Bottom of chassis to bottom of guide post:
1.5mm

Bare chassis weight:
10grams.

Minimum trye diameter:
18mm (leaving 1mm ground clearance)

Additional Information

Ref PCS-32
By Brand PCS
By Scale 1:32
